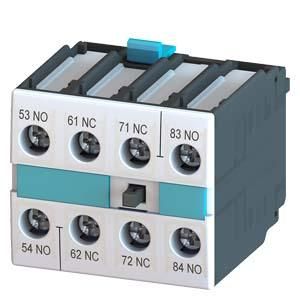

Auxiliary switch block, 2 NO + 2 NC, with order numbers 5 ... 8, DIN EN 50012, 4-pole screw connection, for contactors size S0...S12 SIRIUS 3RH19 auxiliary switch for extending the auxiliary contacts in the control circuit. This 3RH19 auxiliary switch can be mounted on the 3RT1 contactors and 3RH1 auxiliary contactors of sizes S0-S12 without tools. The 3RH19/3RH29 auxiliary switch blocks are available as front or side-mountable versions, with up to four instantaneous switching or up to two leading switching make and break contacts. The auxiliary switches can be designed as positively guided contact elements in 3RH auxiliary contactors or as mirror contacts in 3RT contactors. They are available with screw connection and spring-loaded connection. Simple, efficient, always up-to-date - the SIRIUS modular system.
