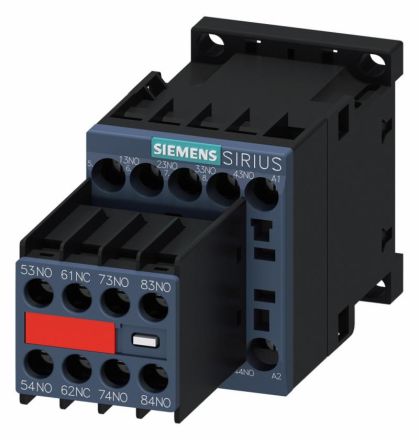

Siemens 3RH2271-1BB40 7S+1OE DC24V contactor

In stock
SKU: 891682
€60.84
Into a basketIn the basketGo

Overview

Contactor relay, 7 NO + 1 NC, DC 24 V, size S00, screw connection, permanent auxiliary switch SIRIUS 3RH2 contactor relay for switching the control signals in the control circuit. The SIRIUS 3RH2 contactor relays have standard-compliant connection designations and a reliable and time-saving connection technology. The output duplication enables the simultaneous switching of several auxiliary circuits. All contacts are also available as SUVA versions with positive guidance for safety applications. The contactor relays are climate-resistant, have a high level of contact reliability and are suitable for worldwide use thanks to the corresponding approvals (e.g. IEC and UL/CSA). They are available in AC or DC operation and are available with screw or spring-loaded technology. The basic version of the contactor relays is 4-pole and can be extended to 8 poles using snap-on auxiliary switches.The extensive accessories of the 3RT2 contactors for sizes S00 to S3 can also be used for the 3RH2 contactor relays.The 3RH2 contactor relays replace the tried and tested 3RH1 series.Simple, efficient, always up to date - the SIRIUS modular system.

Property Value
Number of auxiliary contacts as normally open contacts: 7
Number of auxiliary contacts as normally closed contacts: 1
Rated operating current Ie, 400 V: 3 A
Rated control supply voltage Us at DC: 24 V
Interface: no
Voltage type for actuation: DC
With LED display: no

Characteristics

HAB7S+1OE DC24V
ManufacturerSIEMENS
HAN3RH2271-1BB40
GTIN4011209947443
Number of auxiliary contacts as normally open7
Number of auxiliary contacts as normally closed1
Rated operational current Ie, 400 V3 A
Rated control supply voltage Us at DC24V
With LED displayNo
InterfaceNo
Voltage type for actuationDC
Siemens 3RH2271-1BB40 7S+1OE DC24V contactor
Siemens 3RH2271-1BB40 7S+1OE DC24V contactor
€60.84
