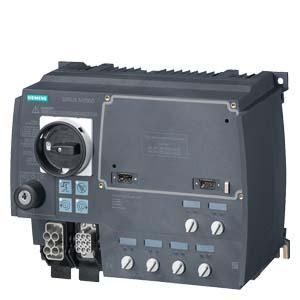

Siemens 3RK1395-6LS41-2AD5 Motor starter SIRIUS M200D

SIRIUS motor starter M200D technology module direct starter mechanically switching AC-3.5.5 kW / 400 V 1.5 A...12.00 A electronic overload protection thermistor: THERMOCLICK / PTC with brake contact 180 V DC 4DI / 2DO Han Q4/2 - Han Q8/0 with manual on-site operation and key switch via communication module 3RK1305* can be used on PROFIBUS or PROFINET Motor starter SIRIUS M200D for starting, monitoring and protecting motors and consumers for use in the field and for fully TIA-integrated, highly automated applications, e.g. in conveyor technology. The robust motor starters with a high degree of protection for PROFIBUS/PROFINET communication are easy to configure and can be installed and put into operation quickly and error-free thanks to the modular starter concept and pre-assembled cables. A cost-effective and quick device replacement is possible in the event of servicing thanks to modularity and automatic reparameterization. The integration of associated sensors is supported. The use of the devices increases system availability thanks to a comprehensive diagnostic concept and sophisticated system monitoring. The Motor Starter ES software is available for project planning, commissioning, operation and diagnostics. PROFIenergy supports active and efficient energy management. The motor starters are approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4ready. Available as direct or reversing starters with various motor current ranges, optionally electromechanical or electronic switching, optionally with brake control or local hand-held on-site control device. A communication module is also required for communication via PROFINET or PROFIBUS. A comprehensive range of accessories suitable for all M200D motor starters is available, e.g. pre-assembled cables.SIRIUS M200D - The robust motor starter for decentralized drive solutions.
