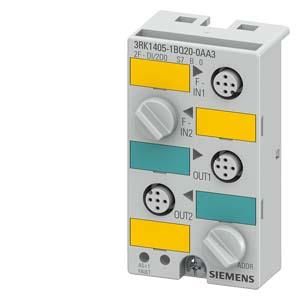

Siemens 3RK1405-1BQ20-0AA3 compact module K45F IP67 Digital

Siemens 3RK1405-1BQ20-0AA3 compact module K45F IP67 Digital

In stock

SKU: 384732

Price on request

€227.72

€0

Overview

ASIsafe compact module K45F digital safety, 2F-DI/2DQ, IP67 2 x input for mechanical sensors 2 x standard output DC 24 V Output supply from DC 24 V 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately

Property	Value
Output current:	2 A
Type of supply voltage:	DC
Input current for signal 1:	5 mA
Width:	15 mm
Height:	80 mm
Depth:	34 mm
Mounting rail mounting possible:	no
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Design of the electrical connection:	screw connection
Performance level according to EN ISO 13849-1:	Level e
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	yes
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Supports protocol for TCP/IP:	no
Type of output voltage:	DC
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	yes
Type of input voltage:	DC
Short-circuit protection, outputs present:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Radio standard GSM:	no
Radio standard GPRS:	no
Number of digital outputs:	2
SIL according to IEC 61508:	3
Digital outputs configurable:	no
Radio standard UMTS:	no
