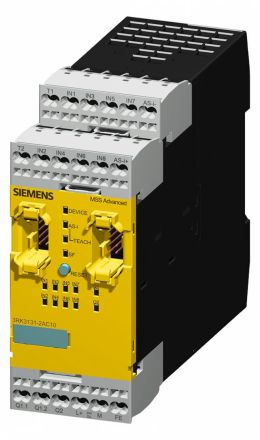

Siemens 3RK3131-2AC10 central module

In stock

SKU: 890923

Price on request

€1,321.96

€0

Overview

SIRIUS, central module 3RK3 Advanced for modular safety system 3RK3 4/8 F-DI,1F-RO,1 F-DO,DC 24 V Monitoring of ASI slaves Control of 12 safe outputs on the AS-Interface bus parameterizable with SW Safety ES 45 mm width Spring-loaded terminal up to SIL3 (IEC 61508) up to Performance Level E (ISO 13849-1) 9 expansion modules can be connected Central module SIRIUS 3RK3 for complex safety applications with AS-Interface connection.

Property	Value
Suitable for monitoring position switches:	yes
Suitable for monitoring proximity switches:	yes
With UL approval:	yes
With muting function:	no
Mounting rail mounting possible:	no
Performance level according to EN ISO 13849-1:	Level e
Design:	Basic device
Number of outputs, safety-related, undelayed, semiconductor:	1
Suitable for monitoring optoelectronic protective devices:	yes
Suitable for monitoring EMERGENCY STOP circuits:	yes
Rated control supply voltage Us at DC:	24 V
Suitable for monitoring valves:	yes
Width:	45 mm
Height:	113 mm
Depth:	124 mm
With removable terminals:	yes
SIL according to IEC 61508:	3
