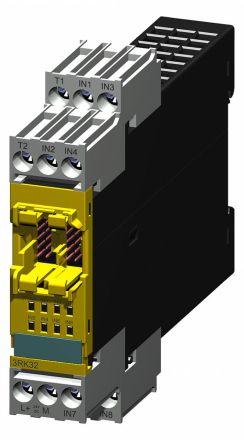

Siemens 3RK3221-1AA10 3RK32 f safety system expansion module

In stock

SKU: 890930

Price on request

€480.33

€0

Overview

SIRIUS, expansion module 3RK32 for modular safety system 3RK3 2/4 F-DI, 1/2 F-RO, DC 24 V/1 A parameterizable via MSS ES 22.5 mm width screw connection up to SIL3 (IEC 61508) up to Performance Level E (ISO 13849-1) without connecting cable

Property	Value
Number of outputs, safety-related, undelayed, contact-based:	2
Suitable for monitoring position switches:	yes
Suitable for monitoring proximity switches:	yes
Suitable for monitoring magnetic switches:	yes
With UL approval:	yes
With muting function:	no
Mounting rail mounting possible:	no
Suitable for monitoring optoelectronic protective devices:	yes
Stop category according to IEC 60204:	other
Suitable for monitoring EMERGENCY STOP circuits:	yes
Rated control supply voltage Us at DC:	24 V
Suitable for monitoring valves:	yes
Suitable for monitoring tactile sensors:	yes
Width:	22.5 mm
Height:	102 mm
Depth:	124 mm
With removable terminals:	yes
SIL according to IEC 61508:	3
