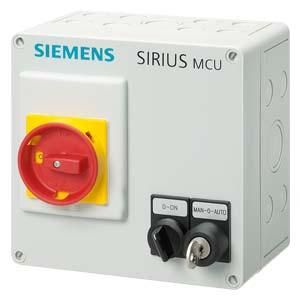

Siemens 3RK4353-3LR58-1BA0 Motor starter 3RK4353-3LR58-1BA Protection IP55 K.stoff

Siemens 3RK4353-3LR58-1BA0 Motor starter 3RK4353-3LR58-1BA Protection IP55 K.stoff

In stock

SKU: 373634

Price on request

€563.16

€0

Overview

SIRIUS MCU motor starter housing protection class IP55 plastic communication without electromechanical switching short-circuit protection with circuit breaker reversing starter brake without performance class 6, 3 A motor protection circuit breaker with bi-metal thermal manual operation latching connection power M-screw connection EGH version

Property	Value
Overload release current setting:	4.5 to 6.3 A
Voltage type for actuation:	AC
Rated operating power at AC-3, 400 V:	2.2 kW
Rated operating current Ie:	6.3 A
Rated control supply voltage Us at AC 50 Hz:	184 to 253 V
Rated control supply voltage Us at AC 60 Hz:	196 to 253 V
With short-circuit release:	yes
Supports protocol for SafetyBUS p:	no
Number of auxiliary contacts as normally closed contacts:	3
Supports protocol for INTERBUS:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Supports protocol for Foundation Fieldbus:	no
Conditional rated short-circuit current, allocation type 2, 230 V:	150000 A
Supports protocol for Data Highway:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFINET IO:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Temperature compensated overload protection:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Rated operating current at AC-3, 400 V:	6.3 A
Supports protocol for SUCONET:	no
Mounting rail mounting possible:	no
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Ambient temperature, upper limit without restrictions:	40 °C
Conditional rated short-circuit current, assignment type 1, 480 Y/277 V:	150000 A
Rated operating power at AC-3, 230 V, 3-phase:	1.5 kW
Conditional rated short-circuit current, assignment type 2, 400 V:	150000 A
Supports protocol for PROFIBUS:	no
Number of auxiliary contacts as normally open:	1
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for INTERBUS-Safety:	no
With transformer:	no
Number of command points:	2
Suitable for EMERGENCY STOP:	no
Assignment type according to IEC 60947-4-3:	Class 1
External reset possible:	no
With fuse:	no
Width:	182 mm
Height:	220 mm
Depth:	145 mm

Characteristics

With fuseNo

Rated operating current Ie6.3 A

External reset possibleNo

With transformerNo

Rated operating current at AC-3, 400 V6.3 A

With short-circuit releaseYes

Temperature-compensated overload protectionYes

Ambient temperature, upper limit without restrictions40 °C

Rated operating power at AC-3, 230 V, 3-phase1.5 kW

Assignment type according to IEC 60947-4-3Class 1

Conditional rated short circuit current, allocation type 2, 400 V150000 A

HAB3RK4353-3LR58-1BA Protection IP55 K.stoff

Manufacturer

HAN3RK4353-3LR58-1BA0

GTIN4011209824881

Number of command posts2

Number of auxiliary contacts as normally open1

Number of auxiliary contacts as normally closed3

Rated operational power at AC-3, 400 V2.2kW

Rated control supply voltage Us at AC 50 Hz184 to 253 V

Rated control supply voltage Us at AC 60 Hz196 to 253 V

Width182 mm

Suitable for EMERGENCY STOPNo

Height220 mm

Voltage type for actuationAC

Depth145 mm

Mounting rail possibleNo

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo

Overload release current setting4.5 to 6.3A
