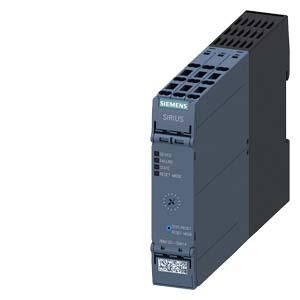

Siemens 3RM1201-3AA14 reversing starter 110-230V

In stock

SKU: 345086

Price on request

€178.31

€0

Overview

Motor starter SIRIUS 3RM1 reversing starter 500 V 0.1-0.5 A 110-230 V AC control circuit push-in main circuit screw connection reversing starter SIRIUS 3RM1 for operational switching of three-phase motors. Narrow width, multifunctional, with electronic overload protection, durable and energy-efficient hybrid switching technology, low device variance due to wide setting range, easy installation due to less wiring effort, fast error diagnosis using LED display, innovative housing concept e.g. with labeled cover flaps and removable connection terminals. Available as direct or reversing starter optionally with ATEX validation and safety-related shutdown, with various motor current ranges, supply voltage types and connection technologies. Extensive accessories such as device connectors, fuse modules, feed-in systems or sealable covers round off the system. Get started in the tightest of spaces - SIRIUS 3RM1 motor starter. SIRIUS 3RM1 reversing starter for operational switching of three-phase motors. Narrow width, multifunctional, with electronic overload protection, durable and energy-efficient hybrid switching technology, low device variance due to wide setting range, easy installation due to less wiring effort, fast error diagnosis using LED display, innovative housing concept e.g. with labeled cover flaps and removable connection terminals. Available as direct or reversing starter optionally with ATEX validation and safety-related shutdown, with various motor current ranges, supply voltage types and connection technologies. Extensive accessories such as device connectors, fuse modules, feed-in systems or sealable covers round off the system. Get started in the tightest of spaces - SIRIUS 3RM1 motor starter.

Property	Value
Overload release current setting:	0.5 A
Voltage type for actuation:	AC/DC
Rated operating power at AC-3, 400 V:	0.12 kW
Rated operating current Ie:	0.5 A
Rated control supply voltage Us at AC 50 Hz:	110 to 230 V
Rated control supply voltage Us at AC 60 Hz:	110 to 230 V
Rated control supply voltage Us at DC:	110 V
With short-circuit release:	no
Supports protocol for SafetyBUS p:	no
Number of auxiliary contacts as normally closed contacts:	1
Supports protocol for INTERBUS:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for Data-Highway:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFINET IO:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Temperature compensated overload protection:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Rated operating current at AC-3, 400 V:	0.5 A
Supports protocol for SUCONET:	no
DIN rail mounting possible:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Ambient temperature, upper limit without restrictions:	60 °C
Rated operating power at AC-3, 230 V, 3-phase:	0.06 kW
Supports protocol for PROFIBUS:	no
Number of auxiliary contacts as normally open:	1
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for INTERBUS-Safety:	no
With transformer:	no
Suitable for EMERGENCY STOP:	no
Number of indicator lights:	4
External reset possible:	yes
With safety lock:	no
Width:	23 mm
Height:	100 mm
Depth:	142 mm

Characteristics

With fuseNo

Rated operating current Ie0.5 A

External reset possibleYes

With transformerNo

Rated operating current at AC-3, 400 V0.5 A

With short-circuit releaseNo

Temperature-compensated overload protectionNo

Ambient temperature, upper limit without restrictions60 °C

Rated operating power at AC-3, 230 V, 3-phase0.06 kW

HAB3RM1201-3AA14 110-230V

Manufacturer

HAN3RM1201-3AA14

GTIN4011209935907

Number of auxiliary contacts as normally open1

Number of auxiliary contacts as normally closed1

Rated operational power at AC-3, 400 V0.12kW

Rated control supply voltage Us at AC 50 Hz110 to 230 V

Rated control supply voltage Us at AC 60 Hz110 to 230 V

Rated control supply voltage Us at DC110V

Width23 mm

Suitable for EMERGENCY STOPNo

Height100 mm

Voltage type for actuationAC/DC

Depth142 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo

Overload release current setting0.5A
