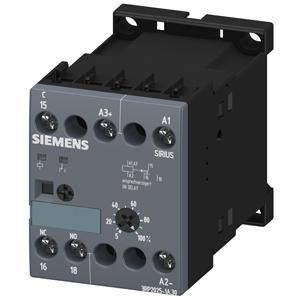

Siemens 3RP2025-1AP30 time relay electronic 1W

In stock
SKU: 366687
€74.52
Into a basketIn the basketGo

Overview

Time relay, electronically delayed response 1 changeover contact AC/DC 24 V, AC 200 to 240 V at AC 50/60 Hz 0.05 s to 100 h Width 45 mm Screw connection SIRIUS 3RP20 time relay, delayed response, for various time-delayed switching operations in control, starting, protection and regulating circuits, e.g. cascaded motor start-up. Wide application range due to diverse functions in the smallest space. Can be used worldwide thanks to international approvals and wide voltage range. The 3RP time relays are available as single or multi-function time relays with semiconductor output or as electromechanical relays with and without positive guidance, each with different connection technologies. SIRIUS Relay - a program for all cases.

Property Value
Number of outputs, delayed, changeover: 1
Can be plugged onto contactor: no
Type of voltage for actuation: AC/DC
Time range: 0.05 to 100 s
Rated control supply voltage Us at AC 50 Hz: 200 to 240 V
Rated control supply voltage Us at AC 60 Hz: 200 to 240 V
Rated control supply voltage Us at DC: 24 V
Width: 45 mm
Depth: 73 mm
Height: 57 mm
With plug-in base: no
Remote control possible: no
Suitable as remote control: no
On-delayed function: yes
Off-delayed function: no
On-delayed function: no
Off-delayed function: no
Star/delta function: no
Pulse-forming function: no
Flashing function starting with pause, fixed time: no
Flashing function starting with pulse, fixed time: no
Function clocked starting with pause, variable: no
Function clocked starting with pulse, variable: no
With semiconductor output: no

Characteristics

HAB3RP2025-1AP30 electronic 1W
ManufacturerSIEMENS
HAN3RP2025-1AP30
GTIN4011209569416
Rated control supply voltage Us at AC 50 Hz200 to 240 V
Rated control supply voltage Us at AC 60 Hz200 to 240 V
Rated control supply voltage Us at DC24V
Width45 mm
Remote control possibleNo
Height57 mm
Voltage type for actuationAC/DC
Depth73 mm
