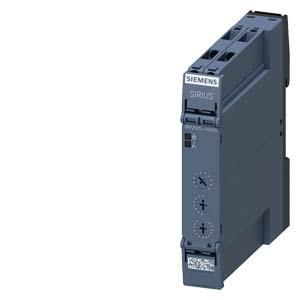

Siemens 3RP2505-1AW30 multifunction time relay 1W 7 time b.

In stock
SKU: 332566
€110.84
Into a basketIn the basketGo

Overview

Time relay, multifunction 1 changeover contact, 13 functions 7 time ranges (0.05 s...100 h) AC/DC 12...240 V at AC 50/60 Hz with LED, screw connection Time relay SIRIUS 3RP25, 13 functions, for all time-delayed switching operations in control, starting, protection and regulating circuits. Wide application area thanks to diverse functions in the smallest of spaces. Can be used worldwide thanks to international approvals and wide voltage range. The innovative housing concept in industrial design offers labeled cover flaps, removable connection terminals and much more. Available as a single or multifunction time relay with semiconductor output or as an electromechanical relay with and without positive guidance, each with different connection technologies. Adhesive films for function labeling are already included in the scope of delivery. The 3RP25 time relays replace the proven 3RP15 series. SIRIUS Relay - a program for all cases.

Property Value
Number of outputs, delayed, changeover: 1
Can be plugged onto contactor: no
Outputs, switchable delayed/undelayed: no
Type of voltage for actuation: AC/DC
Time range: 0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz: 12 to 240 V
Rated control supply voltage Us at AC 60 Hz: 12 to 240 V
Rated control supply voltage Us at DC: 12 to 240 V
Width: 17.5 mm
Depth: 90 mm
Height: 100 mm
With plug-in base: yes
Remote control possible: no
Suitable as a remote control: no
Delayed response function: yes
Delayed release function: no
Passing on/off function: yes
Passing off/on function: yes
Star/delta function: no
Pulse-forming function: yes
Flashing function starting with a pause, Fixed time: yes
Function flashing starting with pulse, fixed time: yes
Function clocking starting with pause, variable: no
Function clocking starting with pulse, variable: no
With semiconductor output: no

Characteristics

HAB3RP2505-1AW30 1W 7Timer
ManufacturerSIEMENS
HAN3RP2505-1AW30
GTIN4011209943476
Rated control supply voltage Us at AC 50 Hz12 to 240V
Rated control supply voltage Us at AC 60 Hz12 to 240V
Rated control supply voltage Us at DC12 to 240V
Width17.5 mm
Remote control possibleNo
Height100 mm
Voltage type for actuationAC/DC
Depth90 mm
