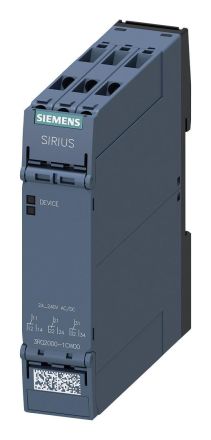

Siemens 3RQ2000-1CW00 3W AC/DC 24-240V coupling relay

In stock
SKU: 775123
€62
Into a basketIn the basketGo

Overview

Coupling relay in an industrial housing 3 changeover contacts Wide voltage AC/DC 24 V to 240 V Screw connection Coupling relay in an industrial housing SIRIUS 3RQ2 for coupling control signals to and from a controller. , All 3RQ2 coupling relays have a wide-range voltage input and can therefore be used universally. The reduction in variants leads to cost savings. High contact reliability is present even at low currents. Removable terminals enable easy device replacement and quick wiring. , Devices with one to three changeover contacts are available, with screw or spring-loaded connection (push-in), some also with hard gold-plated contacts for switching small currents. , The 3RQ2 coupling relays replace the tried and tested 3RS18 series. , SIRIUS Relay - a program for all cases.

Property Value
Number of contacts as changeover contacts: 3
Rated control supply voltage Us at AC 50 Hz: 24 to 240 V
Rated control supply voltage Us at AC 60 Hz: 24 to 240 V
Rated control supply voltage Us at DC: 24 to 240 V
Type of voltage for actuation: AC/DC
Height: 100 mm
Width: 22.5 mm
Depth: 90 mm
With positively guided contacts: no
With removable terminals: no
Complete device with base: no
With LED display: yes

Characteristics

Complete device with baseNo
With positively guided contactsNo
HAB3W AC/DC 24-240V
ManufacturerSIEMENS
HAN3RQ2000-1CW00
GTIN4047621050416
Number of contacts as changeover3
Rated control supply voltage Us at AC 50 Hz24 to 240 V
Rated control supply voltage Us at AC 60 Hz24 to 240 V
Rated control supply voltage Us at DC24 to 240 V
Width22.5 mm
Height100 mm
With LED displayYes
With removable clampsNo
Voltage type for actuationAC/DC
Depth90 mm
Siemens 3RQ2000-1CW00 3W AC/DC 24-240V coupling relay
Siemens 3RQ2000-1CW00 3W AC/DC 24-240V coupling relay
€62
