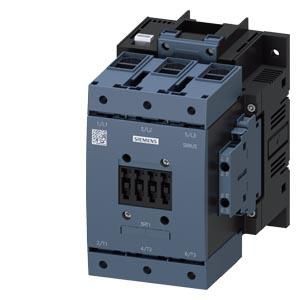

HABAC3: 55 kW/400V DC 110V 2NO+2NC 3-pole S6
HAN3RT1054-1XF46-0LA2
GTIN4047621022437
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of normally open contacts as main contacts3
Rated operating power NEMA73.549875kW
Rated operational power at AC-3, 400 V55kW
Rated operational power at AC-4, 400 V55kW
Rated operational current Ie at AC-1, 400 V160A
Rated operational current Ie at AC-3, 400 V115 A
Rated operational current Ie at AC-4, 400 V97 A
Rated control supply voltage Us at DC110V
Suitable for series installationYes
Voltage type for actuationDC
