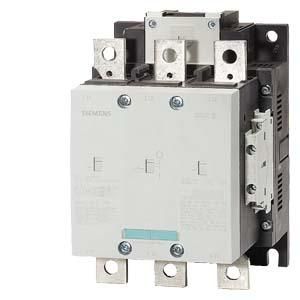

HAB3RT1264-6AF36 110kW/400V/AC-3
HAN3RT1264-6AF36
GTIN4011209508712
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of normally open contacts as main contacts3
Rated operating power NEMA110.3248125kW
Rated operational power at AC-3, 400 V110kW
Rated operational power at AC-4, 400 V110kW
Rated operational current Ie at AC-1, 400 V330A
Rated operational current Ie at AC-3, 400 V225A
Rated operational current Ie at AC-4, 400 V195 A
Rated control supply voltage Us at AC 50 Hz110 to 127 V
Rated control supply voltage Us at AC 60 Hz110 to 127 V
Rated control supply voltage Us at DC110 to 127 V
Suitable for series installationYes
Voltage type for actuationAC/DC
