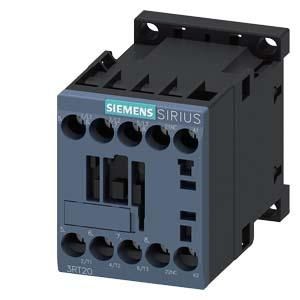

HAB3RT2015-1AH02 AC-3 3kW/400V
HAN3RT2015-1AH02
GTIN4011209827288
Number of auxiliary contacts as normally closed1
Number of normally open contacts as main contacts3
Rated operating power NEMA2.20649625kW
Rated operational power at AC-3, 400 V3kW
Rated operational power at AC-4, 400 V3kW
Rated operational current Ie at AC-1, 400 V18 A
Rated operational current Ie at AC-3, 400 V7 A
Rated operational current Ie at AC-4, 400 V6.5A
Rated control supply voltage Us at AC 50 Hz48V
Rated control supply voltage Us at AC 60 Hz48V
Suitable for series installationYes
Voltage type for actuationAC
