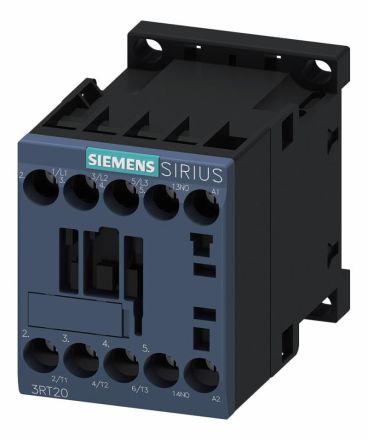

HABAC-3 3kW/400V 1S AC110V 50Hz 120V 3p.
HAN3RT2015-1AK61-1AA0
GTIN4011209947573
Number of auxiliary contacts as normally open1
Number of normally open contacts as main contacts3
Rated operating power NEMA2.20649625kW
Rated operational power at AC-3, 400 V3kW
Rated operational current Ie at AC-1, 400 V18 A
Rated operational current Ie at AC-3, 400 V7 A
Rated operational current Ie at AC-4, 400 V6.5A
Rated control supply voltage Us at AC 50 Hz110V
Rated control supply voltage Us at AC 60 Hz120V
Suitable for series installationYes
Voltage type for actuationAC
