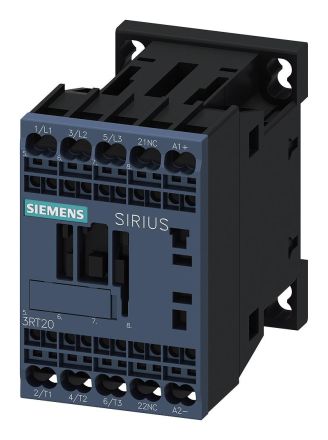

Siemens 3RT2016-2BB42-1AA0 AC-3 4kW/400V 1NC DC 24V 3p. S00 contactor

Power contactor, AC-3 9 A, 4 kW / 400 V 1 NC, DC 24 V upright installation position, 3-pole, size S00, spring-loaded connection SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the SIRIUS modular system with its optimally coordinated products. They impress with high performance combined with a compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations are factory-tested. The contactors offer the optimal connection to the controller for every application (parallel, via ASi or IO-Link). Integrated auxiliary switches reduce the complexity of your setup. The front connections enable easy wiring. The 3RT2 contactors are climate-proof, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4ready. , They are available in various sizes and in a wide power range in AC and DC operation. In addition to screw connection technology, the devices are also available with spring-loaded connections for quick, maintenance-free and vibration-proof connection. , The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, etc., is standard for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 feed-in system significantly reduce the wiring effort. , The 3RT2 power contactors replace the proven 3RT1 series (up to 55 kW). , Simple, efficient, always up-to-date - the SIRIUS modular system.
