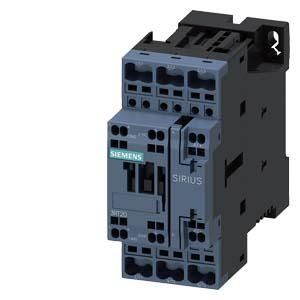

HAB3RT2024-2NP30 AC-3 5.5kW/400V
HAN3RT2024-2NP30
GTIN4011209839168
Number of auxiliary contacts as normally open1
Number of auxiliary contacts as normally closed1
Number of normally open contacts as main contacts3
Rated operating power NEMA5.516240624kW
Rated operational power at AC-3, 400 V5.5kW
Rated operational current Ie at AC-1, 400 V40A
Rated operational current Ie at AC-3, 400 V12A
Rated operational current Ie at AC-4, 400 V12.5A
Rated control supply voltage Us at AC 50 Hz200 to 280 V
Rated control supply voltage Us at AC 60 Hz200 to 280 V
Rated control supply voltage Us at DC200 to 280 V
Suitable for series installationYes
Voltage type for actuationAC/DC
