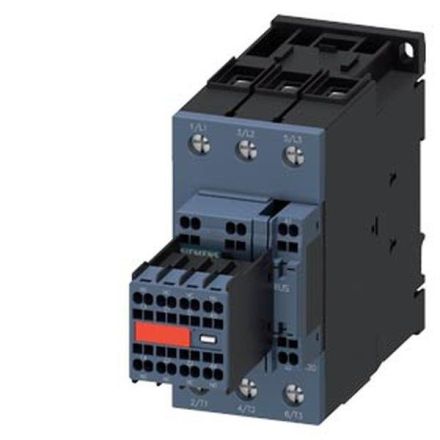

Siemens 3RT2036-3KB44-3MA0 coupling contactor S2 DC24V 3-pole 22kW/400V 2S2OE

In stock
SKU: 366533
€289.79
Into a basketIn the basketGo

Overview

Power contactor, AC-3 50 A, 22 kW / 400 V 2 NO + 2 Oe, DC 24 V with varistor, 3-pole, size S2, spring-loaded connection, auxiliary switch non-detachable suitable for 2A PLC outputs SIRIUS 3RT2 coupling contactor for switching motors and auxiliary and control circuits, specially designed for direct connection to electronic controls. The 3RT2 contactors are part of the SIRIUS modular system with its optimally coordinated products. They impress with their high performance combined with a compact design and high contact reliability. They can be combined in many ways with other components in the load feeder. Many of the device combinations are factory-tested. Integrated auxiliary switches reduce the complexity of your setup. The front connections enable easy wiring. The 3RT2 contactors are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free and vibration-proof connection. Simple, efficient, always up-to-date - the SIRIUS modular system.

Property Value
Number of normally open contacts as main contacts: 3
Number of auxiliary contacts as normally closed contacts: 2
Number of auxiliary contacts as normally open contacts: 2
Rated operating power at AC-3, 400 V: 22 kW
Rated operating current Ie at AC-1, 400 V: 70 A
Rated operating current Ie at AC-3, 400 V: 51 A
Rated operating current Ie at AC-4, 400 V: 41 A
Type of voltage for actuation: DC
Rated control supply voltage Us at DC: 24 V
Suitable for series installation: yes
Rated operating power NEMA: 29.419949999 kW

Characteristics

HABS2 DC24V 3-pole 22kW/400V 2S2OE
ManufacturerSIEMENS
HAN3RT2036-3KB44-3MA0
GTIN4047621010021
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of normally open contacts as main contacts3
Rated operating power NEMA29.419949999kW
Rated operational power at AC-3, 400 V22kW
Rated operational current Ie at AC-1, 400 V70A
Rated operational current Ie at AC-3, 400 V51 A
Rated operational current Ie at AC-4, 400 V41 A
Rated control supply voltage Us at DC24V
Suitable for series installationYes
Voltage type for actuationDC
