Rated operating current Ie at DC-13, 125 V0.55 A
Rated operating current Ie at AC-15, 24 V6 A
Electronic outputNo

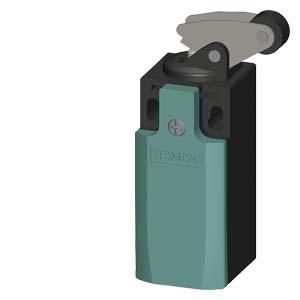

HAB3SE5212-0LF10 SIRIUS 1NO/2NC
HAN3SE5212-0LF10
GTIN4011209862463
Number of contacts as normally open1
Number of contacts as opener2
Number of safety-related auxiliary contacts2
Rated operating current Ie at DC-13, 24 V3 A
Width of the sensor31 mm
Suitable for security functionsYes
Height of the sensor33 mm
Length of the sensor90.5 mm
With status displayNo
Switching function latchingNo
Protection class (NEMA)12
Ambient temperature during operation-25 to 85 °C
Forced openingYes
