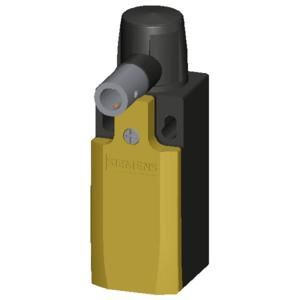

Siemens 3SE5232-0HU21 hinge switch snap contacts 1Ö/1S

Hinge switch plastic housing, 31 mm according to DIN EN 50047 device connection 1 x (M20 x 1.5) 1NO/1NC snap contacts integrated, with hollow shaft diameter = 8 mm switching angle 10° Mechanical safety hinge switch SIRIUS 3SE5 for monitoring the position of movable protective devices, especially for use on hinged doors and flaps of machines. The mechanical safety hinge switches are part of the modular system because they have the same housing as the position switches. Switching off and signaling takes place without any time delay at a small opening angle of 10 degrees. The simple and quick wiring technology enables a great deal of time to be saved when connecting. Fastening and switching points according to EN 50047 and EN 50041. The devices are climate-resistant and approved worldwide (IEC, UL). Various housing sizes are available, with hollow shaft or solid shaft, in plastic or metal. Versions with an integrated hinge are also available. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio. Drive heads with hollow shaft or solid shaft are available as accessories.Safety is a SIRIUS business.
