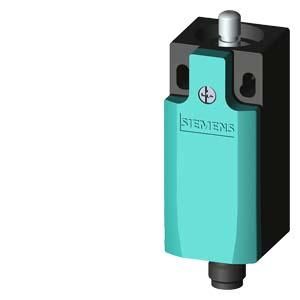

Siemens 3SE5234-0HC05-1AC4 position switch 1S 1OE

In stock

SKU: 345412

Price on request

€38.41

€0

Overview

Position switch plastic housing according to DIN EN 50047, 31 mm 1S/1Ö snap contacts integrated (not replaceable) with M12 connector, 4-pin Pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14 for maximum 250 V and 4 A with Teflon plunger Mechanical position switch SIRIUS 3SE5 for position and location detection of machine parts and position monitoring of protective devices.

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of sensor:	89.7 mm
Width of the sensor:	31 mm
Height of the sensor:	33 mm
Electronic output:	no
Suitable for safety functions:	yes
With status display:	no
Ambient temperature during operation:	-25 to 85 °C
Number of safety-related auxiliary contacts:	1
Forced opening:	yes
Rated operating current Ie at DC-13, 125 V:	0.55 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	4 A
Rated operating current Ie at AC-15, 125 V:	4 A
Switching function latching:	no
Protection class (NEMA):	12
