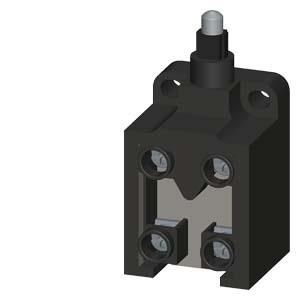

Siemens 3SE5250-0CC05 position switch 30mm 1S 1OE

In stock

SKU: 365514

Price on request

€21.08

€0

Overview

Position switch, plastic housing, unencapsulated, 30 mm, 1 NO/1 NC, snap-action contacts, metal plunger, IP20. Unencapsulated position switches SIRIUS 3SE5 for use as auxiliary switches in cabinets, especially for locations without moisture and dust. Thanks to their compact design, the switches are particularly suitable for confined installation spaces. Thanks to the robust metal plunger, they are highly abrasion-resistant. Fastening and switching points according to EN 50047. The devices are approved worldwide (IEC, UL). Versions with different switching elements in snap-action, slow-action and slow-action with overlap versions are available. Safety is a SIRIUS business.

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of the sensor:	59.2 mm
Width of the sensor:	30 mm
Height of the sensor:	27 mm
Electronic output:	no
Suitable for Safety functions:	yes
With status display:	no
Ambient temperature during operation:	-25 to 85 °C
Number of safety-related auxiliary contacts:	1
Forced opening:	yes
Rated operating current Ie at DC-13, 125 V:	0.55 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	6 A
Switching function latching:	no
