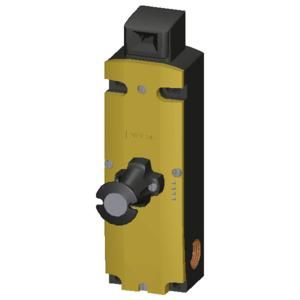

Siemens 3SE5322-1SF21-1AG4 safety position switch with guard locking, locking force 1300N

In stock
SKU: 357064
€299.70
Into a basketIn the basketGo

Overview

Safety position switch with guard locking Locking force 1300 N 5 approach directions High protection class IP69, IEC 60529 Plastic housing, 3x (M20x1, 5) Spring-loaded locking Escape release from the front Magnetic voltage DC 24 V Actuator monitoring 2 NC/1 NO Magnet monitoring 2 NC/1 NO LED display yellow/green Supplied without actuator Please order actuator 3SE5000-0AV0 separately Use IP69 cable gland SIRIUS 3SE5 mechanical safety switches for monitoring the position of movable protective devices. They ensure that protective doors, covers or protective flaps/grilles are kept closed as long as a dangerous condition exists. The drive heads in screwless assembly can be rotated 4x90 degrees. The actuator can be approached in 5 directions, one of which is from the front. The switching elements ensure a very high level of contact reliability and can only be switched with a separately coded actuator, which ensures increased protection against manipulation. LEDs conveniently display the current status of the device. The devices are approved worldwide (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The devices are available with spring or magnetic force locking, in plastic with a locking force of 1300 N or metal with a locking force of 2300 N. A comprehensive range of 3D coded actuators can be ordered. Some variants are optionally available with LED status display. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio. The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Depending on the version, plugs and other connection accessories are available as accessories.Safety is a SIRIUS business.

Property Value
Number of safety-related auxiliary contacts: 4
Rated operating current Ie at AC-15, 24 V: 6 A
Rated operating current Ie at DC-13, 125 V: 0.55 A
Rated operating current Ie at DC-13, 24 V: 3 A
Width of the sensor: 54 mm
Suitable for safety functions: yes
Height of the sensor: 43.5 mm
Length of the sensor: 185 mm
With escape release: yes
With status display: yes
Ambient temperature during operation: -25 to 60 °C
Closing force: 1300 N

Characteristics

Rated operating current Ie at DC-13, 125 V0.55 A
Rated operating current Ie at AC-15, 24 V6 A
HABWith locking locking force 1300N
ManufacturerSIEMENS
HAN3SE5322-1SF21-1AG4
GTIN4011209974098
Number of safety-related auxiliary contacts4
Rated operating current Ie at DC-13, 24 V3 A
Width of the sensor54 mm
Suitable for security functionsYes
Height of the sensor43.5 mm
Length of the sensor185 mm
With status displayYes
Ambient temperature during operation-25 to 60 °C
