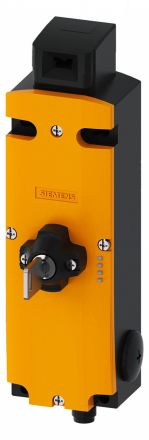

Safety position switch with guard locking Locking force 2600 N 5 approach directions Metal housing, M12 connector ASIsafe integrated Channel 1 = actuator 1 NC Channel 2 = magnet 1 NC spring-loaded Auxiliary release Lock at the front Magnet voltage DC 24 V/AC Actuator monitoring 2 NC/1 NO Magnet monitoring 2 NC/1 NO the matching separate actuator 3SE5000-0AV0 must be ordered separately Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-Interface bus system. The mechanical safety switches are compact thanks to integrated ASIsafe electronics, which requires low power consumption. 3D-coded actuators guarantee a high level of protection against manipulation. LEDs show the current status of the device. The switches can be used for the highest safety requirements in accordance with PL e or SIL 3. Device variants are also available with a high degree of protection IP69K. Various housing sizes are available in plastic or metal. Versions with a separate actuator, with guard locking or as a safety hinge switch are also available. A series with a high degree of protection IP69K rounds off the portfolio. Depending on the version, drive heads, separate actuators, plugs and other mounting/connection accessories are available as accessories.Safety is a SIRIUS business.
