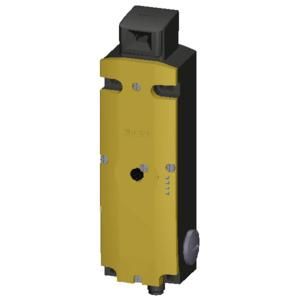

Safety position switch with guard locking Locking force 1300 N 5 approach directions Plastic housing, M12 connector ASIsafe integrated Channel 1 = actuator 2Oe based on the principle of 2v2 evaluation Channel 2 = magnet 1Oe spring-loaded locking Auxiliary release at the front Magnet voltage DC 24 V/AC Monitoring actuator 2Oe/1S Monitoring magnet 2Oe/1S the matching separate actuator 3SE5000-0AV0 must be ordered separately Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-Interface bus system. The mechanical safety switches are compact thanks to integrated ASIsafe electronics, which requires low power consumption. 3D-coded actuators guarantee a high level of protection against manipulation. LEDs show the current status of the device. The switches can be used for the highest safety requirements according to PL e or SIL 3. Device variants are also available with a high degree of protection IP69K. Various housing sizes are available in plastic or metal. Variants with a separate actuator, with guard locking or as a safety hinge switch are also available. A series with a high degree of protection IP69K rounds off the portfolio. Depending on the version, drive heads, separate actuators, plugs and other assembly/connection accessories are available as accessories. Safety is a SIRIUS business. Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with a direct connection to the AS-Interface bus system. The mechanical safety switches are compact thanks to integrated ASIsafe electronics, which require low power consumption. 3D-coded actuators guarantee a high level of protection against manipulation. LEDs show the current status of the device. The switches can be used for the highest safety requirements according to PL e or SIL 3. Device variants are also available with a high degree of protection IP69K. Various housing sizes in plastic or metal are available. Variants with a separate actuator, with a guard lock or as a safety hinge switch are also available. A series with a high degree of protection IP69K rounds off the portfolio. Depending on the version, drive heads, separate actuators, plugs and other assembly/connection accessories are available as accessories. Safety is a SIRIUS business.
