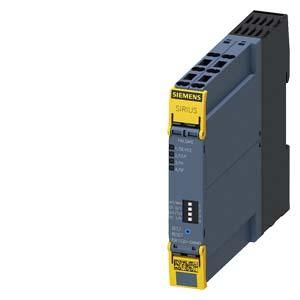

Siemens 3SK1120-2AB40 safety relay

In stock
SKU: 343314
€159.15
Into a basketIn the basketGo

Overview

SIRIUS safety relay basic unit Advanced series electronic enabling circuits 1 enabling circuit 0.5 A Us = 24 V DC spring-loaded connection (push-in) SIRIUS 3SK1 safety relay for autonomous safety applications. The Advanced 3SK112 basic units offer universal applications thanks to their multifunctionality, as well as flexible expansion options. They form an innovative system landscape that can implement complex safety functions with a large number of sensors and outputs. With device connectors, the number of inputs and safe outputs can be expanded reliably and easily without the need for wiring between the devices. Drives up to 3 kW can be integrated directly into the 3SK system with the fail-safe SIRIUS 3SK11 motor starters using device connectors. All components have worldwide approvals and are therefore ideally suited for global use and export. The devices are available with relay or semiconductor outputs, instantaneous or delayed, each with different time ranges, and consistently with screw or spring-loaded connections (push-in). Extensive accessories such as sealing covers, insertion tabs for wall mounting and coding pins make handling easier. Input and output extensions, as well as a separate power supply, can be used using device connectors without additional wiring. The 3SK safety relays replace the tried and tested 3TK28 series. Safety is a SIRIUS business.

Property Value
Suitable for monitoring position switches: yes
Suitable for monitoring magnetic switches: yes
With UL approval: yes
With muting function: no
Mounting rail mounting possible: no
Performance level according to EN ISO 13849-1: Level e
Number of outputs, safety-related, undelayed, semiconductor: 1
Suitable for monitoring optoelectronic protective devices: yes
Suitable for monitoring EMERGENCY STOP circuits: yes
Rated control supply voltage Us at DC: 24 V
Width: 17.5 mm
Height: 100 mm
Depth: 121.6 mm
With removable terminals: no
With start input: yes
With feedback loop: yes
SIL according to IEC 61508: 3

Characteristics

HAB3SK1120-2AB40
ManufacturerSIEMENS
HAN3SK1120-2AB40
GTIN4011209913578
Rated control supply voltage Us at DC24V
Width17.5 mm
Height100 mm
With removable clampsNo
Performance Level according to EN ISO 13849-1Level e
SIL according to IEC 615083
Depth121.6 mm
Mounting rail possibleNo
