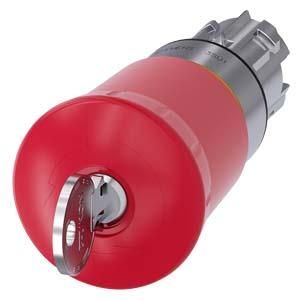

EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, high gloss, red, 40 mm, with IKON lock, lock number 360012K1, positive latching, lock release EMERGENCY STOP mushroom pushbutton SIRIUS ACT in accordance with DIN EN ISO 13850 for controlling safety-related applications with anti-fraud protection. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic. The innovative snap-on concept simplifies installation to such an extent that only one hand and no special tools are required. Groove-free holes are sufficient for mounting holes, as 100% anti-twist protection is already integrated. Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even cleaning with a high-pressure jet is possible. Neither dust, oil nor aggressive alkalis can disrupt reliable operation. In addition to the standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring effort, minimizes sources of error and gives you more flexibility. The graphical online configurator provides convenient support when selecting and ordering individual devices, housings and labels. Comprehensive documentation (e.g. manual, 3D data, connection diagram) is available. Available versions: 30/40/60 mm mushroom diameter, illuminated/unilluminated, pull/turn/lock release. Note: Please order individual devices, holders and modules separately. SIRIUS ACT - Performance in Action when commanding and reporting. Simply assembled, simply strong, simply perfect.
| Property | Value |
| Button color: | red |
| Hole diameter: | 22.3 mm |
| Height of opening: | 82.1 mm |
| Width of opening: | 40.0 mm |
| Push-to-contact: | no |
| Switching function latching: | yes |
| Lens design: | round |
| Diameter of the cap: | 40.0 mm |
| Suitable for lighting: | no |
| Suitable for EMERGENCY STOP: | yes |
| With front ring: | no |
| Protection class (NEMA) : | 13 |
