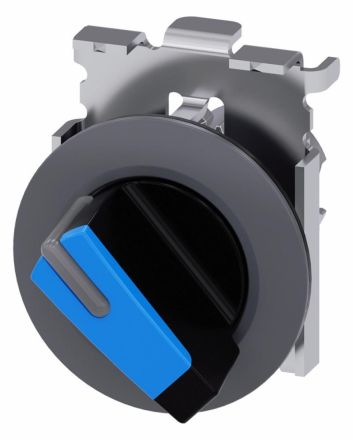

Illuminated toggle switch, 30 mm, round, matt metal, blue, short toggle, front ring for flat installation, 2 switch positions OI, latching, switching angle 90°, 10:30 a.m./1:30 p.m. SIRIUS ACT toggle switch for switching and controlling electrical consumers.Under the SIRIUS ACT brand name, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.The innovative snap-on concept simplifies assembly to such an extent that only one hand and no special tools are required. Groove-free holes are sufficient for mounting holes, as 100% anti-twist protection is already integrated.Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and outdoor use. Cleaning with a high-pressure jet is even possible. Neither dust, oils nor aggressive alkalis can disrupt reliable operation.In addition to standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring effort, minimizes sources of error and gives you more flexibility.The graphical online configurator provides convenient support when selecting and ordering individual devices, housings and labels. Comprehensive documentation (e.g. manual, 3D data, connection diagram) is available.Available versions: several colors, 2-4 switch positions, short/long toggle or rotary knob, illuminated/unilluminated (lighting can also be retrofitted), latching/momentary actuation.Note: Please order individual devices, holders and modules separately.SIRIUS ACT - Performance in Action when commanding and reporting. Simply installed, simply strong, simply perfect.
| Feature | Value |
| Hole diameter: | 30.5 mm |
| Height of opening: | 22.1 mm |
| Width of opening: | 38 mm |
| Suitable for lighting: | yes |
| Number of switching positions: | 2 |
| With front ring: | yes |
