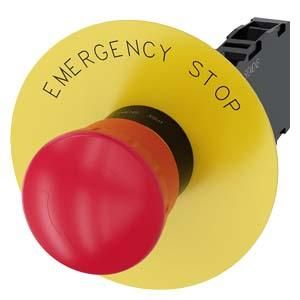

EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching, in accordance with DIN EN ISO 13850, twist to release, with yellow backing plate, labeling: EMERGENCY STOP, with holder, 1 NO + 1 NC, screw connection EMERGENCY STOP mushroom pushbutton SIRIUS ACT in accordance with DIN EN ISO 13850 for controlling safety-related applications with protection against being fooled.Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of command and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.The innovative snap-on concept simplifies assembly to such an extent that only one hand and no special tools are required. Groove-free holes are sufficient for mounting holes, as 100% anti-twist protection is already integrated.Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even cleaning with a high-pressure jet is possible. Neither dust, oils nor aggressive alkalis can disrupt reliable operation.In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring effort, minimizes sources of error and gives you more flexibility.The graphic online configurator provides convenient support when selecting and ordering individual devices, housings and labels. Comprehensive documentation (e.g. manual, 3D data, connection diagram) is available.Available versions: 30/40/60 mm mushroom diameter, illuminated/unilluminated, pull/turn/lock release.Note: Complete device, delivery including holder and modules.SIRIUS ACT - Performance in Action when commanding and reporting. Simply installed, simply strong, simply perfect.
| Property | Value |
| Number of contacts as normally open: | 1 |
| Number of contacts as normally closed: | 1 |
| Momentary: | no |
| Switching function latching: | no |
| Suitable for lighting: | no |
| Number of command points: | 1 |
| Hole diameter: | 22.3 mm |
| Width of opening: | 75 mm |
| Height of opening: | 46.4 mm |
| With front ring: | no |
