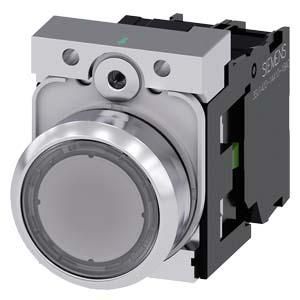

Illuminated pushbutton, 22 mm, round, metal, high gloss, clear, push button, flat, momentary, with holder, 1S, LED module with integrated LED AC/DC 24V, screw connection Illuminated pushbutton SIRIUS ACT for switching and controlling electrical consumers.Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of command and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.The innovative snap-on concept simplifies assembly to such an extent that only one hand and no special tools are required. Groove-free holes are sufficient for mounting holes, as 100% anti-twist protection is already integrated.Thanks to the consistently high protection class, the robust devices are suitable for industrial use and outdoor use. Cleaning with a high-pressure jet is even possible. Neither dust, oils nor aggressive alkalis can disrupt reliable operation.In addition to standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring effort, minimizes sources of error and gives you more flexibility.The graphical online configurator provides convenient support when selecting and ordering individual devices, housings and labels. Comprehensive documentation (e.g. manual, 3D data, connection diagram) is available.Available versions: several colors, illuminated/non-illuminated, with/without labeling, latching/momentary actuation, various pushbutton and front ring heights.Note: Complete device, delivery including holder and modules.SIRIUS ACT - Performance in Action when commanding and reporting. Simply installed, simply strong, simply perfect.
| Property | Value |
| Number of contacts as normally open: | 1 |
| Momentary: | no |
| Switching function latching: | no |
| Suitable for lighting: | yes |
| Number of command points: | 1 |
| Lamp supply voltage: | 24 V |
| Hole diameter: | 22.3 mm |
| Width of opening: | 29.5 mm |
| Height of opening: | 11 mm |
| With front ring: | yes |
