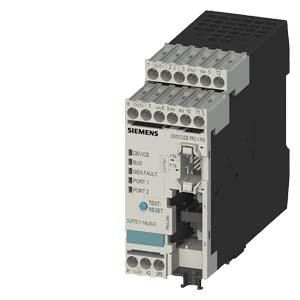

Basic unit SIMOCODE pro V PN, Ethernet/PROFINET IO, PN system redundancy, OPC UA server, web server, transmission rate 100 Mbit/s, 2 x bus connection via RJ45, 4I/3O freely parameterizable, US: 110...240 V AC/DC, input for thermistor connection, monostable relay outputs, expandable with expansion modules Motor management system SIMOCODE pro V PN for comprehensive protection, monitoring, safety and control functions for asynchronous motors as well as detailed operating, service and diagnostic data for process control systems and controllers via the most common fieldbus systems. The variable and intelligent motor management system offers the possibility of implementing many control functions, e.g. for pole switches or slide control, and functions independently of the automation system. In conjunction with various expansion modules, it provides a comprehensive range of inputs and outputs, voltage and power recording, fail-safe shutdown of motors, precise earth fault detection via the 3UL23 residual current transformer, analog value monitoring and temperature detection. Depending on the version, a wide variety of communication connections such as PROFIBUS, PROFINET, OPC UA, Modbus RTU or EtherNet/IP are possible. The system provides detailed operating, service and diagnostic data anytime and anywhere. Worldwide approvals (e.g. IEC and UL/CSA) are also available for potentially explosive applications (ATEX or IEC Ex). Use with IE3/IE4 motors is supported. The SIMOCODE ES (TIA Portal) software is available for configuring, commissioning, operating and diagnosing SIMOCODE pro. With the SIMOCODE pro block library for SIMATIC PCS 7, SIMOCODE pro can be easily integrated into the SIMATIC PCS 7 process control system. The SIMOCODE pro V basic units are available with DC 24 V or AC/DC 110-240 V control supply voltage. At least one current/voltage measuring module and a suitable 3UF793 connecting cable are required for operation. These, optional operator panels with and without display as well as various expansion modules are available separately. A step into the future with SIMOCODE pro.
| Property | Value |
| Number of outputs, contact-based: | 3 |
| Current measuring module: | yes |
| Input for thermistor connection: | yes |
| Rated control supply voltage Us for DC: | 110 to 240 V |
| Voltage measuring module: | yes |
| Rated control supply voltage Us at AC 50 Hz: | 110 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 110 to 240 V |
| Input for earth fault detection: | no |
