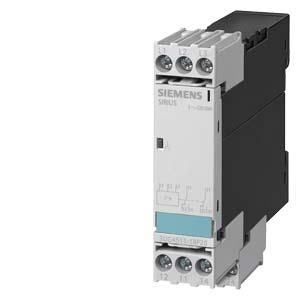

Siemens 3UG4511-1AQ20 analog monitoring relay AC 50 to 60Hz 1WE

In stock
SKU: 341052
€97.72
Into a basketIn the basketGo

Overview

Analog monitoring relay phase sequence monitoring 3 x 420...690 V AC 50...60 Hz 1 changeover contact screw connection Analog adjustable mains monitoring relay SIRIUS 3UG4 for monitoring phase sequence, phase failure and asymmetry and/or undervoltage, e.g. in mobile systems such as air conditioning compressors, refrigerated containers, construction site compressors or cranes. Worldwide use through international validation. Different variants enable application-specific product selection. Less space required in the control cabinet thanks to a narrow width. All versions with removable connection terminals. In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free and vibration-proof connection. Variants with a wide voltage range without auxiliary voltage can be used in all networks in the world. The comprehensive range of accessories, such as device identification plates, insertion tabs and cover caps, is the same for all relays. SIRIUS relays - a program for all situations.

Property Value
Number of contacts as changeover contacts: 1
Width: 22.5 mm
Height: 83 mm
Depth: 91 mm
Overvoltage detection function: no
Rated control supply voltage Us at AC 50 Hz: 420 to 690 V
With removable terminals: yes
Phase sequence monitoring function: yes
Phase failure detection function: no
Undervoltage detection function: no
Asymmetry detection function: no
Voltage measuring range: 420 to 690 V
Rated control supply voltage Us at AC 60 Hz: 420 to 690 V

Characteristics

HAB3UG4511-1AQ20 AC 50 to 60Hz 1WE
ManufacturerSIEMENS
HAN3UG4511-1AQ20
GTIN4011209642201
Number of contacts as changeover1
Rated control supply voltage Us at AC 50 Hz420 to 690 V
Rated control supply voltage Us at AC 60 Hz420 to 690 V
Width22.5 mm
Height83 mm
With removable clampsYes
Depth91 mm
Siemens 3UG4511-1AQ20 analog monitoring relay AC 50 to 60Hz 1WE
Siemens 3UG4511-1AQ20 analog monitoring relay AC 50 to 60Hz 1WE
€97.72
