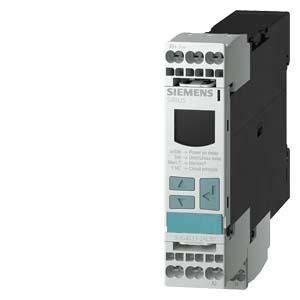

Siemens 3UG4633-2AL30 digital monitoring relay digital AC 50 to 60HZ

In stock
SKU: 357641
€149.75
Into a basketIn the basketGo

Overview

Digital monitoring relay voltage monitoring, 22.5 mm from 17-275 V AC/DC overshoot and undershoot self-powered interference peak delay 0.1 to 20 s hysteresis 0.1 to 150 V 1 changeover contact spring-loaded technology spring-loaded technology Digitally adjustable voltage monitoring relay SIRIUS 3UG4 for monitoring voltages for overshoot and undershoot, e.g. to protect a system from damage, to protect against battery deep discharge or to switch on a system from a defined voltage. Worldwide use through international validation. The relay can be variably set to overshoot, undershoot or window monitoring. Delay times and RESET behavior can be freely parameterized. Less space required in the control cabinet thanks to a narrow width. Reliable diagnosis through display of ACTUAL value and status messages. All versions with removable connection terminals.In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free and vibration-proof connection. The devices are divided into self-supplied and externally supplied devices, optionally in a wide voltage range or with IO-Link.The comprehensive accessories, such as device identification plates, push-in tabs and cover caps, are standardized for all relays.SIRIUS relays - a program for all occasions.

Property Value
Response value voltage: 17 to 275 V
Max. permissible response delay time: 20 s
Number of contacts as changeover contacts: 1
Min. adjustable release delay time: 0.1 s
Max. permissible release delay time: 20 s
Min. adjustable response delay time: 0.1 s
Width: 22.5 mm
Height: 94 mm
Depth: 91 mm
Voltage measuring range 1: 17 to 275 V
Rated control supply voltage Us at AC 50 Hz: 17 to 275 V
With removable terminals: yes
1-phase undervoltage possible: yes
3-phase undervoltage possible: no
1-phase overvoltage possible: yes
3-phase overvoltage possible: no
1-phase window possible: yes
3-phase window possible: no
Contains DC undervoltage function: yes
Contains DC overvoltage function: yes
Contains DC voltage window function: yes
Voltage type of measuring range: AC/DC
Rated control supply voltage Us at AC 60 Hz: 17 to 275 V
Rated control supply voltage Us at DC: 17 to 275 V

Characteristics

HAB3UG4633-2AL30 digital AC 50 to 60HZ
ManufacturerSIEMENS
HAN3UG4633-2AL30
GTIN4011209642706
Number of contacts as changeover1
Rated control supply voltage Us at AC 50 Hz17 to 275 V
Rated control supply voltage Us at AC 60 Hz17 to 275 V
Rated control supply voltage Us at DC17 to 275 V
Width22.5 mm
Height94 mm
With removable clampsYes
Depth91 mm
