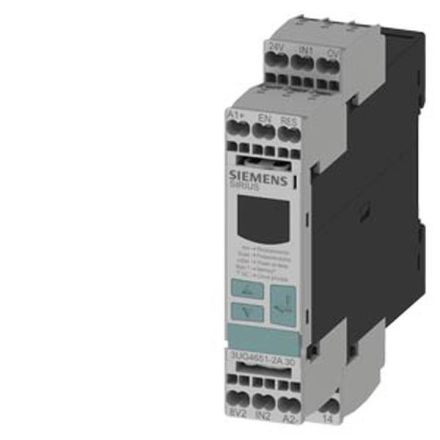

Siemens 3UG4651-2AW30 digital monitoring relay digital AC 50 to 60HZ

In stock
SKU: 351489
€227.95
Into a basketIn the basketGo

Overview

Digital monitoring relay Speed monitoring from 0.1 to 2200 rpm Overshoot and undershoot AC/DC 24 to 240 V DC and AC 50 to 60 Hz Start-up delay 1 to 900 s Tripping delay 0.1 to 99.9 s Hysteresis 0.1 to 99 rpm 1 changeover contact with or without error memory Spring-loaded technology Digitally adjustable speed monitoring relay SIRIUS 3UG4 for monitoring speeds for overshoot and undershoot, e.g. in the event of slip or a belt drive breaking, also suitable for slowly rotating motors. Worldwide use thanks to wide voltage supply and internationally validated. Fast commissioning possible thanks to menu-guided parameterization and actual value display for limit value determination. The device has a permanent display of the actual value or type of error. 2- or 3-wire sensors and sensors with mechanical switching or electronic output can be connected. Auxiliary voltage for the sensor is integrated. Devices can be changed without rewiring thanks to removable terminals. Reliable system diagnostics thanks to clear error messages on the display and switchable error memory. In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free and vibration-proof connection. They are optionally available with IO-Link. The comprehensive range of accessories, such as device identification plates, insertion tabs and cover caps, is standard for all relays. SIRIUS relays - a program for all cases.

Property Value
Number of outputs, signaling function, delayed, contact-based: 1
Operating frequency: 50 to 60 Hz
Suitable for safety functions: no
With feedback loop: no
With approval for BG BIA: no
With UL approval: yes
Performance level according to EN ISO 13849-1: without
Voltage type for actuation: AC/DC
Width: 22.5 mm
Height: 86 mm
Depth: 103 mm
With removable terminals: yes
Speed monitoring function: yes
Standstill monitoring function: no
Rated control supply voltage Us at AC 50 Hz: 24 to 240 V
Rated control supply voltage Us at AC 60 Hz: 24 to 240 V
Rated control supply voltage Us at DC: 24 to 240 V

Characteristics

HAB3UG4651-2AW30 digital AC 50 to 60HZ
ManufacturerSIEMENS
HAN3UG4651-2AW30
GTIN4011209682047
Rated control supply voltage Us at AC 50 Hz24 to 240 V
Rated control supply voltage Us at AC 60 Hz24 to 240 V
Rated control supply voltage Us at DC24 to 240 V
Width22.5 mm
Suitable for security functionsNo
Height86 mm
With removable clampsYes
Performance Level according to EN ISO 13849-1Without
Voltage type for actuationAC/DC
Depth103 mm
Siemens 3UG4651-2AW30 digital monitoring relay digital AC 50 to 60HZ
Siemens 3UG4651-2AW30 digital monitoring relay digital AC 50 to 60HZ
€227.95
Into a basketIn the basketGo
