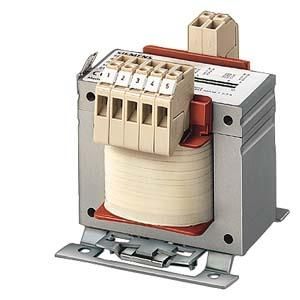

Siemens 4AM3242-8DN00-0EA0 transformer SITAS IP00

In stock

SKU: 344923

Price on request

€148.59

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 063 /0, 19, UPRI(V):550-525-500-480-460- 440-415-400-380-230-208, USEC(V):24, ISEC(A):2, 63, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREWS / DIN RAIL, EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >SAFETY TRANSFORMER< The 4AM transformers combine all Properties of single-phase safety, isolating, control or mains transformers. This will enable you to master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	63 VA
Height:	98 mm
Width:	86 mm
Depth:	90 mm
Primary voltage 1:	550 V
Secondary voltage 1:	24 V
Suitable for Series installation:	no
Short-circuit proof:	no
Primary voltage 2:	525 V
Primary voltage 3:	500 V
Primary voltage 4:	480 V
Primary voltage 5:	460 V
Primary voltage 6:	440 V
Primary voltage 7:	415 V
Primary voltage 8:	400 V
Primary voltage 9:	380 V
Primary voltage 10:	230 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	8.4 %
Toroid core:	no
Insulation class according to IEC 85:	B
Suitable for Board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
