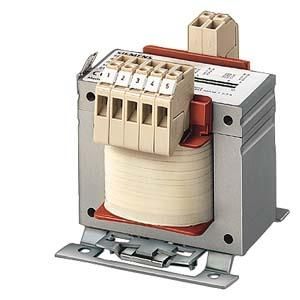

Siemens 4AM3842-8EN00-0EA0 transformer SITAS IP00

In stock

SKU: 346025

Price on request

€189.22

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 16 /0, 49, UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230, USEC(V):24, ISEC(A):6, 67, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREWS / DIN RAIL, EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >SAFETY TRANSFORMER< The transformers 4AM combine all the properties of single-phase safety, isolating, control and mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	160 VA
Height:	106 mm
Width:	98 mm
Depth:	104 mm
Primary voltage 1:	600 V
Secondary voltage 1:	24 V
Suitable for Series installation:	no
Short-circuit proof:	no
Primary voltage 2:	575 V
Primary voltage 3:	550 V
Primary voltage 4:	525 V
Primary voltage 5:	500 V
Primary voltage 6:	480 V
Primary voltage 7:	460 V
Primary voltage 8:	440 V
Primary voltage 9:	415 V
Primary voltage 10:	400 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	7.7 %
Toroid core:	no
Insulation class according to IEC 85:	B
Suitable for Board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
