Catalog

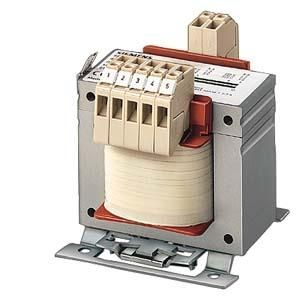

Siemens 4AM4042-8EN00-0EA0 transformer SITAS IP00

In stock
SKU: 334009
€244.26
Into a basketIn the basketGo

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 25 /0, 85, UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230, USEC(V):24, ISEC(A):10, 4, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREWS / DIN RAIL, EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >SAFETY TRANSFORMER< The transformers 4AM combine all the properties of single-phase safety, isolating, control and mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property Value
Rated apparent power: 250 VA
Height: 106 mm
Width: 98 mm
Depth: 118 mm
Primary voltage 1: 600 V
Secondary voltage 1: 24 V
Suitable for Series installation: no
Short-circuit proof: no
Primary voltage 2: 575 V
Primary voltage 3: 550 V
Primary voltage 4: 525 V
Primary voltage 5: 500 V
Primary voltage 6: 480 V
Primary voltage 7: 460 V
Primary voltage 8: 440 V
Primary voltage 9: 415 V
Primary voltage 10: 400 V
Designed as an isolating transformer: no
Relative short-circuit voltage uk: 5.4 %
Toroid core: no
Insulation class according to IEC 85: B
Suitable for Board mounting: no
Designed as a safety transformer: no
Designed as an economy transformer: no

Characteristics

Short circuit proofNo
Secondary voltage 124 V
HAB4AM4042-8EN00-0EA0 SITAS-IP00
ManufacturerSIEMENS
HAN4AM4042-8EN00-0EA0
GTIN4001869905082
Width98 mm
Suitable for series installationNo
Height106 mm
Depth118 mm
