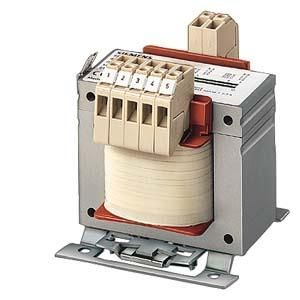

Siemens 4AM4342-8DN00-0EB0 transformer SITAS 1-phase 0.315/1.12kVA

In stock

SKU: 365182

Price on request

€293.94

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 315 /1, 12, UPRI(V):550-525-500-480-460- 440-415-400-380-230-208, USEC(V):24, ISEC(A):13, 1, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:DIN RAIL, EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >SAFETY TRANSFORMER< The 4AM transformers combine all the properties of Single-phase safety, isolating, control or mains transformers. This will enable you to master any application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	315 VA
Height:	111 mm
Width:	107 mm
Depth:	120 mm
Primary voltage 1:	550 V
Secondary voltage 1:	24 V
Suitable for Series installation:	no
Short-circuit proof:	no
Primary voltage 2:	525 V
Primary voltage 3:	500 V
Primary voltage 4:	480 V
Primary voltage 5:	460 V
Primary voltage 6:	440 V
Primary voltage 7:	415 V
Primary voltage 8:	400 V
Primary voltage 9:	380 V
Primary voltage 10:	230 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	6.5 %
Toroid core:	no
Insulation class according to IEC 85:	B
Suitable for Board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
