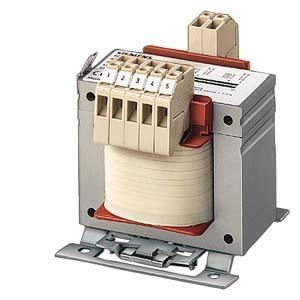

Siemens 4AM5742-8ED40-0FA0 transformer SITAS IP00

In stock

SKU: 356071

Price on request

€576.13

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):1 /5, UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230, USEC(V):2X115, ISEC(A):4, 35-8, 7, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREWS, EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 4AM transformers combine all Properties of single-phase safety, isolating, control or mains transformers. This will enable you to master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	1000 VA
Height:	144 mm
Width:	152 mm
Depth:	132 mm
Primary voltage 1:	600 V
Secondary voltage 1:	230 V
Suitable for series installation:	no
Short-circuit proof:	no
Primary voltage 2:	575 V
Primary voltage 3:	550 V
Primary voltage 4:	525 V
Primary voltage 5:	500 V
Primary voltage 6:	480 V
Primary voltage 7:	460 V
Primary voltage 8:	440 V
Primary voltage 9:	415 V
Primary voltage 10:	400 V
Secondary voltage 2:	115 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	2.5 %
Toroid core:	no
Insulating material class according to IEC 85:	B
Suitable for circuit board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
