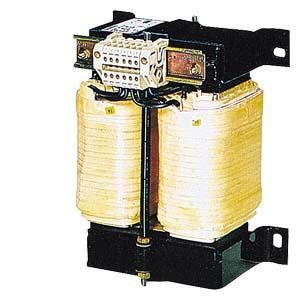

Siemens 4AT3032-5AT10-0FA0 transformer SITAS IP00

In stock

SKU: 382511

Price on request

€1,669.56

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):4 /16, UPRI(V):400+/-5%, USEC(V):230, ISEC(A):17, 4, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:55 /H, IP00, CONNECTION:SCREW CONNECTION, MOUNTING:SCREWS, EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 4AT transformers combine all the properties of single-phase safety, isolating, control or mains transformers.

Property	Value
Rated apparent power:	4000 VA
Height:	270 mm
Width:	164 mm
Depth:	155 mm
Primary voltage 1:	420 V
Secondary voltage 1:	230 V
Suitable for series installation:	no
Short-circuit proof:	no
Primary voltage 2:	400 V
Primary voltage 3:	380 V
Designed as isolating transformer:	no
Relative short-circuit voltage uk:	3.76 %
Toroid core:	no
Insulation class according to IEC 85:	H
Suitable for circuit board mounting:	no
Designed as Safety transformer:	no
Designed as economy transformer:	no
