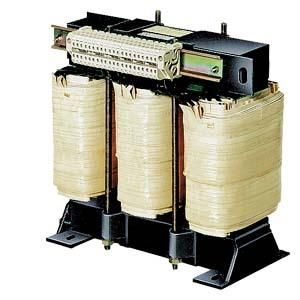

Siemens 4AU3032-8CC40-0HA0 transformer SITAS IP00

In stock

SKU: 350592

Price on request

€3,675.56

€0

Overview

TRANSFORMER SITAS, PHASES:3, PN/PN(S6)(KVA):6, 3 /28, UPRI(V):Y500-440-380+/-20/D289- 254-220+/-11, USEC(V):Y 400 / D 230, ISEC(A):9, 1-15, 83, F(HZ):50...60, SWITCHING GRADE/SHIELDING:IIIIII0 /0, TA/ISOKL:55 /H, IP00, CONNECTION:SCREW CONNECTION, MOUNTING:SCREWS, EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 3-phase transformers 4AU are designed as Isolating, safety or mains matching transformers with different primary and secondary voltages and vector groups. They are suitable for fuseless construction due to their low inrush current, and with Sirius 3RV circuit breakers.

Property	Value
Designed as a safety transformer:	no
Designed as an economy transformer:	no
Designed as an isolating transformer:	no
Rated power:	6300 VA
Width:	310 mm
Height:	270 mm
Insulation class according to IEC 85:	H
Short-circuit proof:	no
Primary voltage 1:	520 V
Primary voltage 10:	300 V
Primary voltage 2:	500 V
Primary voltage 3:	480 V
Primary voltage 4:	460 V
Primary voltage 5:	440 V
Primary voltage 6:	420 V
Primary voltage 7:	400 V
Primary voltage 8:	380 V
Prim ary voltage 9:	360 V
Relative short-circuit voltage uk:	2.6 %
Secondary voltage 1:	400 V
Secondary voltage 2:	230 V
Depth:	258 mm
