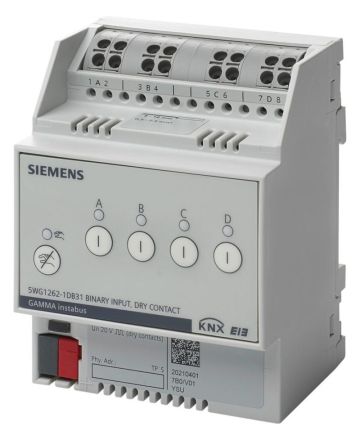

Siemens 5WG1262-1DB31 4x potential-free binary input

In stock
SKU: 891075
€153.49
Into a basketIn the basketGo

Overview

One potential-free contact per input, - Direct operation on the device for simulating input states and status display via LED per input, - Button on the front of the device for activating and deactivating direct operation and LED for status display of direct operation, - Maintenance-free terminals for connecting and looping through untreated conductors, single-wire, fine-wire and multi-wire, 0.5 to 2.5 mm, - Max. 100 m length of connecting cables for conductors twisted in pairs, - Electronics operated via bus voltage, - Housing: plastic, color RAL 7035 (light gray), N dimension, - Modular device for mounting on TH35 DIN EN 60715 mounting rail, - Protection class: IP 20, - Max. width 4 HP (1 HP = 18 mm)

Property Value
Width in modular units: 4
Mounting type: REG
Number of inputs: 4
LED control: yes
Protection class (IP): IP20
External query voltage required: no
Bus system KNX: yes
Bus system radio bus: no
Bus system Powernet: no
LON bus system: no
Other bus systems: without
With bus connection: yes
With LED display: yes
Bidirectional radio: no
KNX radio bus system: no
Removable bus module: no

Characteristics

Number of inputs4
HAB5WG1262-1DB31 4x potential-free
ManufacturerSIEMENS
HAN5WG1262-1DB31
GTIN4047625013967
Other bus systemsWithout
Width in pitch units4
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalNo
With bus connectionYes
With LED displayYes
Mounting typeREG
IP protection)IP20
Siemens 5WG1262-1DB31 4x potential-free binary input
Siemens 5WG1262-1DB31 4x potential-free binary input
