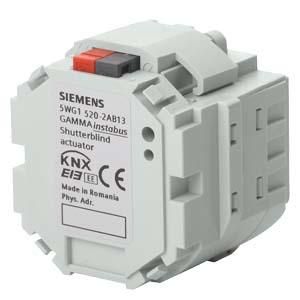

Siemens 5WG1520-2AB13 UP blind actuator UP 520/13

In stock
SKU: 373059
€95.65
Into a basketIn the basketGo

Overview

Electrically interlocked relays for one channel (drive protection) , - End position detection , - Screwless terminals for connecting and looping through untreated conductors, single-wire, fine-wire and multi-wire, 0.5...2.5 mm2 diameter , - Electronics operated via bus voltage , - Integrated bus coupler Bus connection via bus terminal , - For installation in flush-mounted device boxes with a diameter of 60 mm, 60 mm deep

Property Value
Mounting type: Flush-mounted
Max. Number of blind outputs: 1
Current type: AC
Max. Switching capacity: 1380 W
Switching current ohmic: 6 A
Protection class (IP): IP20
KNX bus system: yes
Radio bus system: no
Powernet bus system: no
With bus connection: yes
LON bus system: no
Other Bus systems: without
On-site/manual operation: no
With LED display: no
Switching function: no
KNX radio bus system: no
Bidirectional radio: no
Removable bus module: no
Min. depth of device box: 60 mm

Characteristics

Insert Module TypeBlind covers
HAB5WG1520-2AB13 UP520/13
ManufacturerSIEMENS
HAN5WG1520-2AB13
GTIN4001869436326
Other bus systemsWithout
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalNo
Max. switching capacity1380W
Min. depth of the device box60 mm
With bus connectionYes
With LED displayNo
Mounting typeFlush-mounted
IP protection)IP20
Current typeAC
