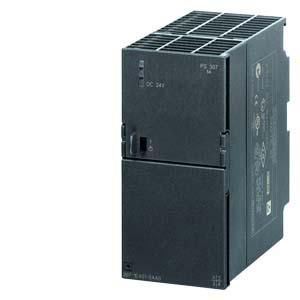

Siemens 6AG1307-1EA01-7AA0 DC power supply

In stock

SKU: 385906

Price on request

€394.46

€0

Overview

SIPLUS S7-300 PS 307 -25...+70°C with conformal coating based on 6ES7307-1EA01-0AA0 . regulated power supply Input: AC 120/230V Output: DC 24V/5A Like the CPU, the power supply is also protected against extreme environmental conditions. Regardless of whether it is temperature expansion, protection against moisture and condensation or mechanically, biologically and chemically active substances. With SIPLUS extreme, the power supply is reliably guaranteed even in harsh environmental conditions.

Property	Value
Type of input voltage:	AC
Type of output voltage:	DC
Input voltage at AC 50 Hz:	85 to 264 V
Input voltage at AC 60 Hz:	85 to 264 V
Max. input current at AC 50 Hz:	2.3 A
Max. Input current at AC 60 Hz:	2.3 A
Output voltage at DC:	23.27 to 24.72 V
Max. Output current at DC:	5 A
Width:	60 mm
Height:	125 mm
Depth:	120 mm
Suitable for safety functions:	no
Redundancy capability:	no
Power output:	120 W
