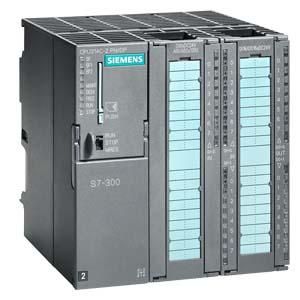

Siemens 6AG1314-6EH04-7AB0 PLC basic unit CPU314C-2PN/DP

Siemens 6AG1314-6EH04-7AB0 PLC basic unit CPU314C-2PN/DP

In stock

SKU: 368002

Price on request

€4,752.63

€0

Overview

SIPLUS S7-300 CPU 314C-2PN/DP with conformal coating -25...+70°C based on 6ES7314-6EH04-0AB0. Compact CPU with 192 KByte RAM, 24 DI/16 DO, 4 AI, 2 AA, 1 Pt100, 4 fast counters (60 kHz), 1st interface MPI/DP 12MBit/s, 2nd interface Ethernet PROFINET, with 2 port switch, integrated. Power supply DC 24V, front connector (2x 40-pin) and Micro Memory Card required SIPLUS S7-300 CPU 314C-2PN/DP SIPLUS S7-300 CPU 314C-2PN/DP with conformal coating -25...+70°C based on 6ES7314-6EH04-0AB0, compact CPU with 192 KByte RAM, 24 DI/16 DO, 4 AI, 2 AA, 1 Pt100, 4 fast counters (60 kHz), 1st interface MPI/DP 12MBit/s, 2nd interface Ethernet PROFINET, with 2 port switch, integrated. Power supply DC 24V, front connector (2x 40-pin) and Micro Memory Card required SIPLUS S7-300 central module CPU 314C-2 PN/DP 24DI / 16DO / 5AI / 2AA, 192 KB -25 ... +70 °C with conformal coating based on 6ES7314-6EH04-0AB0

Property	Value
Height:	125 mm
Width:	120 mm
Depth:	130 mm
Wireless standard WLAN 802.11:	no
With display:	no
Wireless standard Bluetooth:	no
Suitable for safety functions:	no
Number of PROFINET interfaces:	1
Supports protocol for INTERBUS:	no
Front installation possible:	no
Rack mounting possible:	no
IO-Link Master:	no
Redundancy capability:	yes
Type of supply voltage:	DC
Supply voltage for DC:	19.2 to 28.8 V
Memory type:	RAM
Wall/direct mounting possible:	no
System component:	yes
Rail mounting possible:	yes
Processing time (1K, binary instruction):	0.06 ms
Supports protocol for DeviceNet Safety:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for SUCONET:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFIsafe:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for data highway:	no
Supports protocol for PROFINET CBA:	yes
Supports protocol for other bus systems:	yes
Supports protocol for TCP/IP:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for ASI:	no
Supports Protocol for LON:	no
Design:	compact
Memory size:	192 kByte
Number of HW interfaces Industrial Ethernet:	1
Number of HW interfaces serial RS-485:	1
Number of HW interfaces other:	1
With optical interface:	no
Program memory expansion possible:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Radio standard GSM:	no
Number of analogue inputs:	5
Number of digital inputs:	24
Radio standard GPRS:	no
Number of analogue outputs:	2
Number of digital Outputs:	16
Wireless standard UMTS:	no
