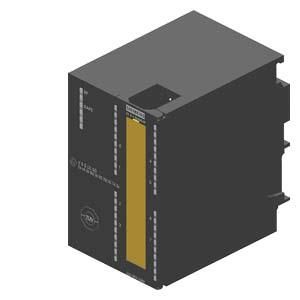

Siemens 6AG1326-1RF01-4AB0 Digital input SIPLUS S7-300SM 326F DI8 NAMUR

In stock

SKU: 363909

Price on request

€3,148.70

€0

Overview

SIPLUS S7-300 SM 326F DI8 NAMUR for medial exposure with conformal coating based on 6ES7326-1RF01-0AB0 . Digital input 'SM 326, 8 DI DC 24V, NAMUR,' fail-safe NAMUR input for SIMATIC S7 F-systems, up to category 4 (EN 954-1) / SIL3 (IEC 61508) /PLE (ISO 13849), 1x 40-pin SIPLUS S7-300 SM 326F DI8 NAMUR for medial exposure with conformal coating based on 6ES7326-1RF01-0AB0, Digital input 'SM 326, 8 DI, DC 24V, NAMUR,' fail-safe NAMUR input for SIMATIC S7 F-systems, up to category 4 (EN 954-1) / SIL3 (IEC 61508) /PLE (ISO 13849), 1x 40-pin SIPLUS S7-300 Digital module input SM 326, F-DI 8xDC 24 V NAMUR with conformal coating based on 6ES7326-1RF01-0AB0

Property	Value
Number of digital inputs:	8
Redundancy capability:	yes
Supply voltage for DC:	20.4 to 28.8 V
Height:	125 mm
Width:	80 mm
Depth:	120 mm
Type of supply voltage:	DC
Type of input voltage:	DC
Performance level according to EN ISO 13849-1:	Level e
Suitable for safety functions:	yes
Delay time for signal change:	1.2 to 3 ms
Associated equipment (Ex ia):	no
Associated Equipment (Ex ib):	yes
Digital inputs configurable:	yes
