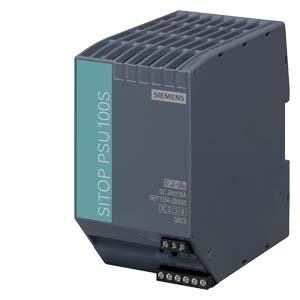

Siemens 6AG1334-2BA20-4AA0 DC power supply SIPLUS PSU100S

In stock
SKU: 377015
€554.84
Into a basketIn the basketGo

Overview

SIPLUS PS PSU100S 24V/10A based on 6EP1334-2BA20 with conformal coating, -25.+70°C, regulated power supply INPUT Output: DC 24V/10A The SIPLUS extreme variant also protects the automation components from harsh environmental conditions, such as particularly high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and mechanically active substances, such as those that can occur in control cabinets or container solutions close to production. This means that your automation tasks are reliably protected and offers additional investment security.

Property Value
Installation height: 225 mm
1. Output voltage: 24 V
Type of supply voltage: AC
Max. Output current 1: 12 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 230 V
Rated supply voltage at AC 60 Hz: 120 V
Short-circuit proof: yes
Stabilized: yes
Direct mounting possible: no
Output voltage regulated: yes
Power output: 288 W
Suitable for series installation: yes
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 70 mm
Height: 125 mm
Depth: 120 mm
Nominal output voltage 1: 24 V
Nominal output current 1: 10 A
Installation width: 70 mm

Characteristics

Type of voltage of the supply voltageAC
Short circuit proofYes
HAB6AG1334-2BA20-4AA0 SIPLUS PSU100S
ManufacturerSIEMENS
HAN6AG1334-2BA20-4AA0
GTIN4047618044800
Width70 mm
Installation width70 mm
Installation height225 mm
Suitable for series installationYes
Height125 mm
IP protection)IP20
Depth120 mm
Mounting rail possibleYes
