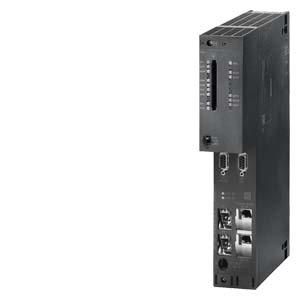

Siemens 6AG1417-5HT06-7AB0 PLC basic unit

In stock

SKU: 351457

Price on request

€35,677.08

€0

Overview

SIPLUS S7-400 CPU 417-5H -25...+70°C with conformal coating based on 6ES7417-5HT06-0AB0 . Central module for S7-400H and S7-400F/FH 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for sync modules, 32MByte memory (16MByte data/16MByte program) The SIPLUS extreme variant also protects the automation components from harsh environmental conditions, such as particularly high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and mechanically active substances, such as those that can occur in control cabinets or container solutions close to production. This means that even your demanding automation tasks are reliably protected and offer additional investment security.

Property	Value
Height:	290 mm
Width:	50 mm
Depth:	219 mm
Wireless standard WLAN 802.11:	no
With display:	no
Wireless standard Bluetooth:	no
Suitable for Safety functions:	yes
Number of PROFINET interfaces:	2
Supports protocol for INTERBUS:	no
Front installation possible:	no
Rack mounting possible:	no
Performance level according to EN ISO 13849-1:	Level e
IO-Link Master:	no
Redundancy capability:	yes
Voltage type of supply voltage:	AC/DC
Memory type:	RAM
Wall/direct mounting possible:	no
System component:	yes
Rail mounting possible:	no
Processing time (1K, binary instruction):	0.0075 ms
Supports protocol for DeviceNet Safety:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for SUCONET:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFINET IO:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFIsafe:	yes
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Data-Highway:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for other bus systems:	no
Supports protocol for TCP/IP:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for ASI:	no
Supports protocol for LON:	no
Design:	modular
Memory size:	32000 kByte
Number of HW interfaces Industrial Ethernet:	2
Number of HW interfaces serial RS-485:	2
Number of HW interfaces other:	2
With optical interface:	no
Program memory expansion possible:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Wireless standard GSM:	no
Wireless standard GPRS:	no
SIL according to IEC 61508:	3
Wireless standard UMTS:	no
