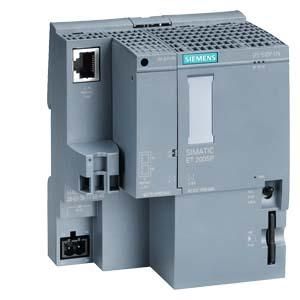

Siemens 6AG1512-1DK01-2AB0 Central module SIPLUS ET 200SP CPU 1512SP-1 PN

SIPLUS ET 200SP CPU 1512SP-1 PN based on 6ES7512-1DK01-0AB0 with conformal coating, -40.+60°C, central module with 200 KB RAM for program and 1MByte for data, 1st interface, PROFINET IRT with 3 port switch, 48 NS bit performance, SIMATIC memory card required, bus adapter required for port 1 and 2 SIMATIC ET 200SP is a modular, scalable and highly flexible, decentralized I/O system. Due to its small footprint, it is particularly designed for installation in small control boxes close to the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200SP can be expanded with up to 64 peripheral modules that can be plugged in any combination. The system offers a very extensive range of modules. Many modules are also available in different versions, which significantly improves scalability in terms of functionality and price. In addition to modules with standard functionality (ST), there are also modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed). Modules with basic functionality (BA) are available for price-sensitive applications. The advantage of the ET 200SP system lies in its ease of use, for example through the free choice of PROFINET connection technology via the bus adapter, tool-free wiring using push-in technology, improved accessibility of the wiring through the new arrangement of the spring openers next to the associated conductor opening and the channel-specific diagnostic functions. The availability and productivity of the machine are ensured by the option of changing modules and terminal boxes during operation, known as hot swapping. Thanks to the conformal coating and the extended temperature range, the SIPLUS extreme components are particularly suitable for decentralized control boxes in which there is no room for air conditioning and heating or where demanding environmental conditions prevail. Your automation components are therefore also protected from damage if harmful gases, moisture, frost or mechanically active substances penetrate. A SIMATIC memory card is required to operate this module.
