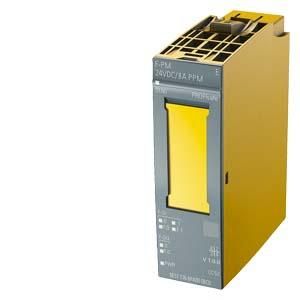

SIPLUS ET 200SP F-PM-E 24VDC/8A PPM RAIL -25 ... +55°C T1 with 70°C for 10 min with conformal coating based on 6ES7136-6PA00-0BC0 . POWERM. F-PM-E PPM PROFIsafe, for ET 200SP DC 24V safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3 2 safe dig. inputs 1 safe dig. output PPM The SIMATIC ET 200SP is a modular, scalable and highly flexible, decentralized I/O system. Due to its small footprint, it is particularly designed for installation in small control boxes close to the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200SP can be expanded with up to 64 peripheral modules, which can be plugged in in any combination. The system offers a very extensive range of modules. Many modules are also available in different versions, which significantly improves scalability in terms of functionality and price. In addition to modules with standard functionality (ST), there are also modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed). Modules with basic functionality (BA) are available for price-sensitive applications. The advantage of the ET 200SP system lies in its ease of use, for example through the free choice of PROFINET connection technology via the bus adapter, tool-free wiring using push-in technology, improved accessibility of the wiring through the new arrangement of the spring openers next to the associated conductor opening and the channel-specific diagnostic functions. The availability and productivity of the machine are ensured by the option of changing modules and terminal boxes during operation, known as hot swapping. Like the CPU, the power supply is also protected against extreme environmental conditions. Whether it is temperature expansion, protection against moisture and condensation or mechanically, biologically and chemically active substances. With SIPLUS extreme, the power supply is reliably guaranteed even in harsh environmental conditions.
